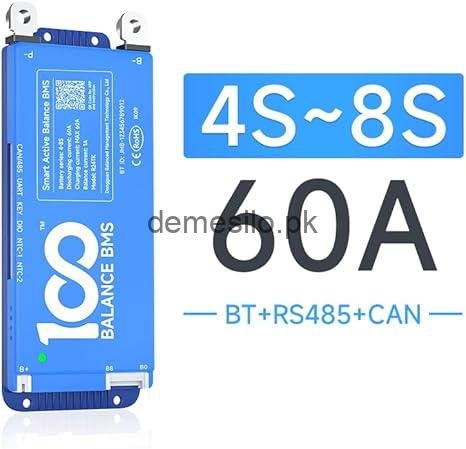

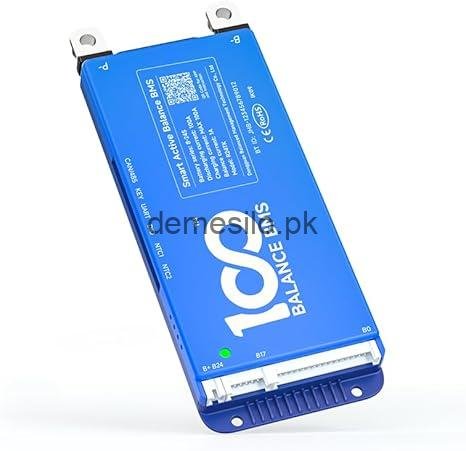

100BALANCE 60A 4-8S Full Function Smart Active Balance BMS Wifi/UART/RS485/CAN
₨ 15,000
| Weight | 0.1 kg |
|---|
2 in stock
Description
- This is a full-featured active balanced BMS with CAN/RS485 communication ports. 4~8 strings 60A intelligent multi-strings with 1A balancing current.

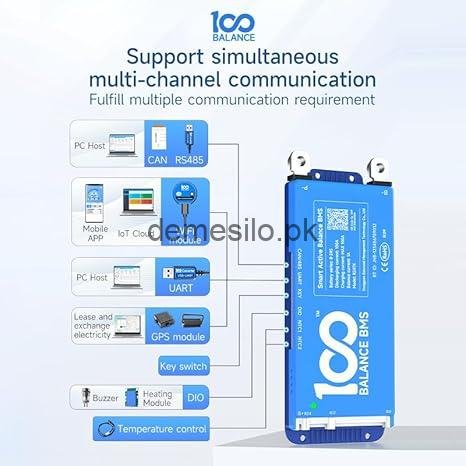

- Build-in bluetooth module,Support simultaneous multi-channel communication: CAN/ RS485/ WIFI / UART / GPS(4G)/HEATING / BUZZER/ TEMPERATURE etc. But please purchase the parts separately.
- Comprehensive protection and more safe. Basic protection functions: Overcharge /Over discharge/Overcurrent/Short circuit/Temperature protection.

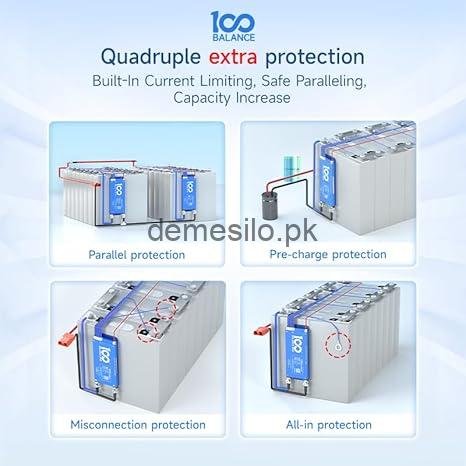

- Extra protection features: Pre-charge protection/ Misconnection protection/All-in protection/Parallel protection
Reviews (0)
Shipping & Delivery
Related products
JK Smart BMS JK BMS B2A20S20P Active Balance Smart BMS 200A CANBUS Rs485 Heat 36V 48V 60V 8S 10S 12S 17S 20S 24S Lifepo4 Li-Ion Lto Battery BMS Battery Equalizer (Color : B2A20S20P, Size : JK)
Package
BMS{BT bulit-in}
* Temperature sensor(40cm)
* Balance Wires(75cm)
* Active Switch(15cm)
*Heating cable(Onlyfor BMS With Heat Function)
H:BMS With Heat Function
C:BMS With CANBUS chip Bulit-in
NOTE: For instructions on heating cables,
the green 5PIN cable of the heating cable needs to be linked to the heating pad,
and the rest of the black and red cables are linked to the smart charger
(after the smart charger links the BMS,
it detects the temperature of the battery through the BMS,
which automatically monitors the charging status of the battery)
Heat Function interface
Description of heating function:
Battery temperature is below low temperature charge protection, turn off charging, turn on heating.
Cryogenic charge protection is a parameter that can be set within APP
The heating power depends on the battery voltage and the resistance value of the heating film.
Battery voltage U.
Heating resistance R.
Power equals U*U/R
Heating current I=U/R;
The maximum I (current) of the board design is 3A.
MAX heating power 200W(100W OF B2A8S20P).
